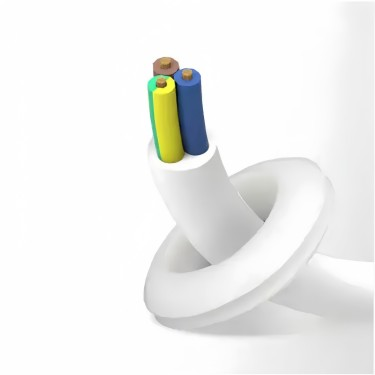

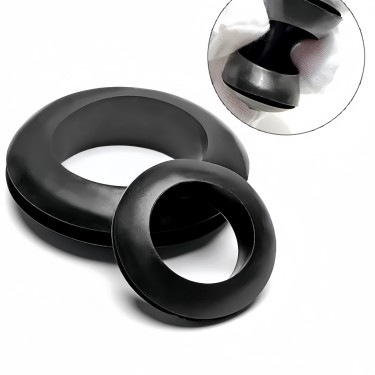

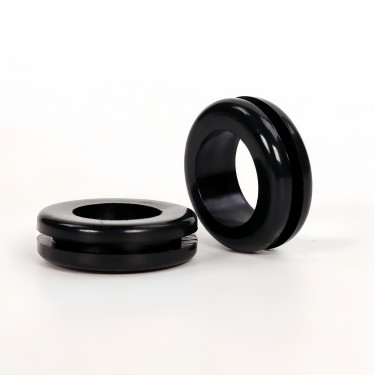

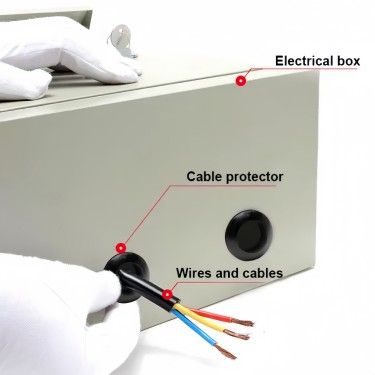

Rubber grommets are versatile components that serve a crucial purpose in various industrial and electronic applications. They provide a protective barrier when wires or tubes need to traverse through metal or other materials that could potentially cause harm. Their primary function is to safeguard cables from being damaged by sharp edges or corners.
Explore our selection of standard Buna-N (Nitrile) grommets designed for insulation. If you would like to learn more about our rubber grommets, such as the Buna-N (Nitrile) variety, please get in touch with us.

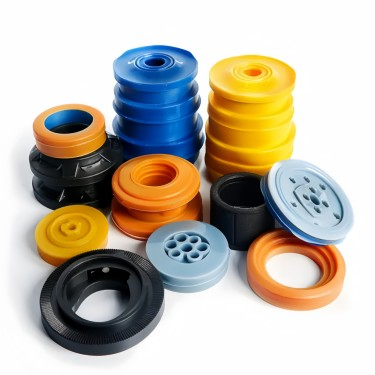

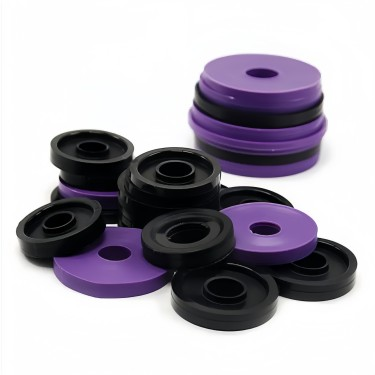

SunRise Rubber Plastic offers a diverse range of grommet shapes to meet various needs:
Various Shapes to Choose From: Elliptical, Quadrilateral, and Circular
Feel free to reach out to SunRise Rubber Plastic if you are uncertain about the ideal grommet shape for your needs. Our team can provide expert advice based on our knowledge as rubber grommet manufacturers.
Diverse Industries Rely on Rubber Grommets
Beyond their use in electronic devices, rubber grommets have a broad range of applications across multiple sectors, including medical, building, automotive, and industrial fields. Our products cater to both original equipment manufacturers and the aftermarket, with a steady supply available to distributors. As a trusted manufacturer of rubber grommets, we have established a reputation for delivering exceptional quality products.
| 1 | Product Name: | Rubber Grommet | ||
| Other Name: | Edge Protection Ring, Strain Relief Bush, Flanged Grommet, Oblong Grommet, Reducer Grommet, EMI Shielding Grommet, Fire-Rated Grommet, Oil-Resistant Grommet, Vibration Damping Grommet, Silicone Grommet, EPDM Grommet, Neoprene Grommet, FKM High-Temp Grommet, Auto Wiring Grommet, PCB Mounting Grommet, Firewall Grommet, Marine Cable Transit, Medical Tubing Grommet, NBR Flanged Auto Grommet, Copper-Shielded EMI Grommet, FDA Silicone Snap-In Grommet, IP68 EPDM Marine Transit | |||
| 2 | Optional Materials | |||
| Material | Key Properties | Working Temp.(°C) | Hardness(Shore A) | |
| Silicone Rubber (VMQ) | Widest temp range, excellent insulation; Low strength, poor oil resistance | -100 to 250 | 20–80 | |
| Ethylene Propylene Diene Monomer (EPDM) | Best weathering/ozone resistance; Good steam/acid/alkali resistance; Poor oil resistance | -50 to 150 | 40–90 | |
| Styrene-Butadiene Rubber (SBR) | Good wear resistance, uniform texture; Low elasticity, poor aging resistance | -40 to 100 | 40–95 | |
| Nitrile Rubber (NBR) | Best cost-effective oil resistance; Strength increases with acrylonitrile content; Poor ozone resistance | -30 to 120 | 40–100 | |
| Neoprene(CR) | Flame retardant, good weathering/ozone resistance; Moderate oil resistance | -40 to 120 | 40–95 | |
| Nitrile Rubber (NBR) | Best cost-effective oil resistance; Strength increases with acrylonitrile content; Poor ozone resistance | -30 to 120 | 40–100 | |
| Natural Rubber (NR) | High elasticity, excellent tensile strength & abrasion resistance; Poor oil/ozone resistance | -60 to 80 | 40–90 | |
| 3 | Producing Technoly | |||
| 3.1 Pression Rubber Molding | ||||
| 4 | Use Cases | |||
| Automotive Industry | ||||
| Industrial Equipment and Machinery | ||||
| Electronics and Electrical Appliances | ||||
| Aerospace and Maritime | ||||
